Here is  a picture of the upper seat adjustment clamp.  Just below it you can see the lower sliding attachment point.  It is important to slide this piece over the tube before you weld it in place.

This is the inner frame that makes up the horizontal stabilizer.

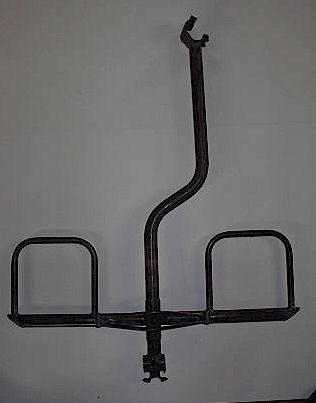

Rudder bar and axes tube,complete.


If you click on this picture you can see how they were made.
